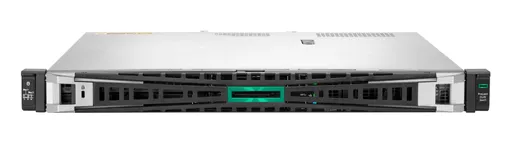

HPE ProLiant DL20Gen11 Intel Xeon E-2436 2.90 GHz 6C 1P 16GB Intel VROC 2.5 SFF 800W Gigabit Ethernet 1U Rack Server

HPE ProLiant DL20 Gen11

The dense and compact HPE ProLiant DL20 Gen11 server powered by Intel® Xeon® E and Pentium® Processors provides a unique
blend of enterprise class capabilities & value. It offers mobility, easy deployment and outstanding configuration flexibility to cater to
a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space
constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE
iLO 6.

Key Features

• Supports Intel Xeon E-2400 series processors, up to 8 cores.
• HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
• Optional HPE iLO management port as an option kit for faster data transmission with enhanced security.
• One PCIe Gen5 slot for greater I/O bandwidth.
• One OCP slot for greater I/O bandwidth.

Processor

Processor name: Intel® Xeon® E-2436 (6 core, 2.90 GHz, 18 MB Intel® Smart Cache, 65W)

Processor number: 1 processor included

Processor core available: 6 core

Processor speed: 2.90 GHz

Processor cache: 18 MB Intel® Smart Cache

Server Memory

Memory type: HPE DDR5 Standard Memory

Included memory: 16 GB (1x16 GB UDIMM, 4800 MT/s)

Server Cooling

System fan features: 3x high performance non-hot plug and non-redundant fans

Server Expansions

Expansion slots: Two maximum, for detailed descriptions refer to the QuickSpecs

Server Form Factor

Form factor: 1U Rack

Server Controllers

Network controller: HPE embedded 1GB 4-port BCM5719 Network Adapter

Storage controller: Embedded Intel VROC SATA software RAID

Server Drives

Included hard drives: None ship standard, 4 SFF supported

Optical drive type Optional : DVD-ROM, DVD-RW

Server Power

Power supply type: 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Management Software

Infrastructure management: HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM

Security

Security Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled.

Warranty

Server warranty includes 3-year parts, 3-year labor, and 3-year on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, visit www.hpe.com/services/support.
